Description

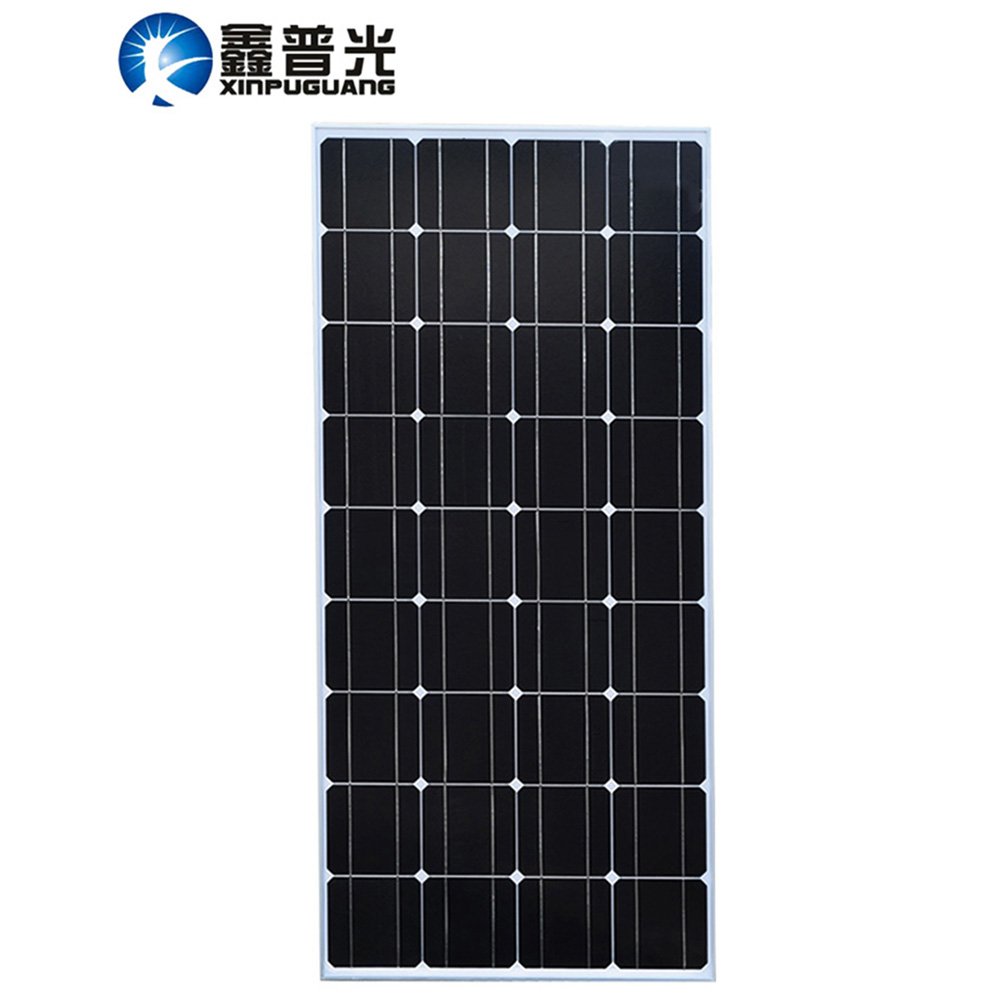

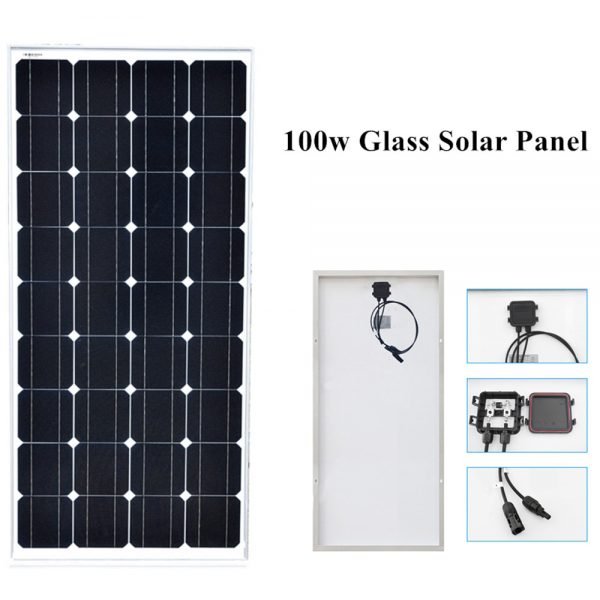

Product Name: 18V 100W glass Solar Panel
Features:

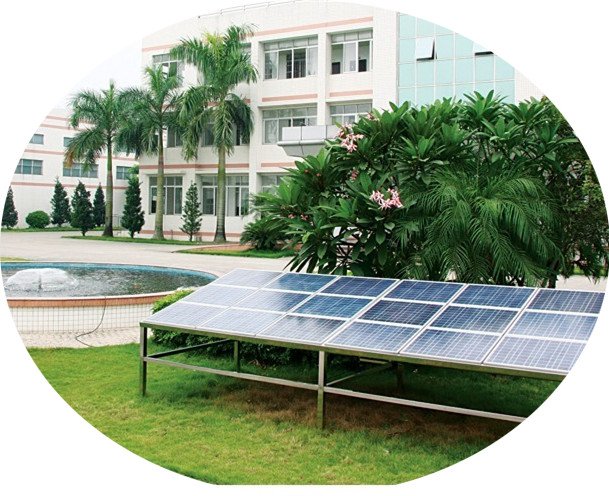

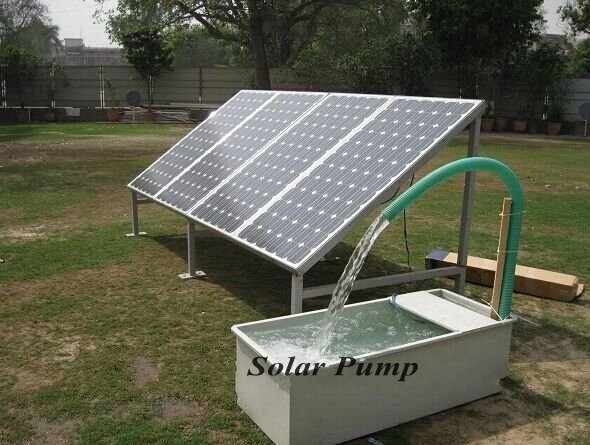

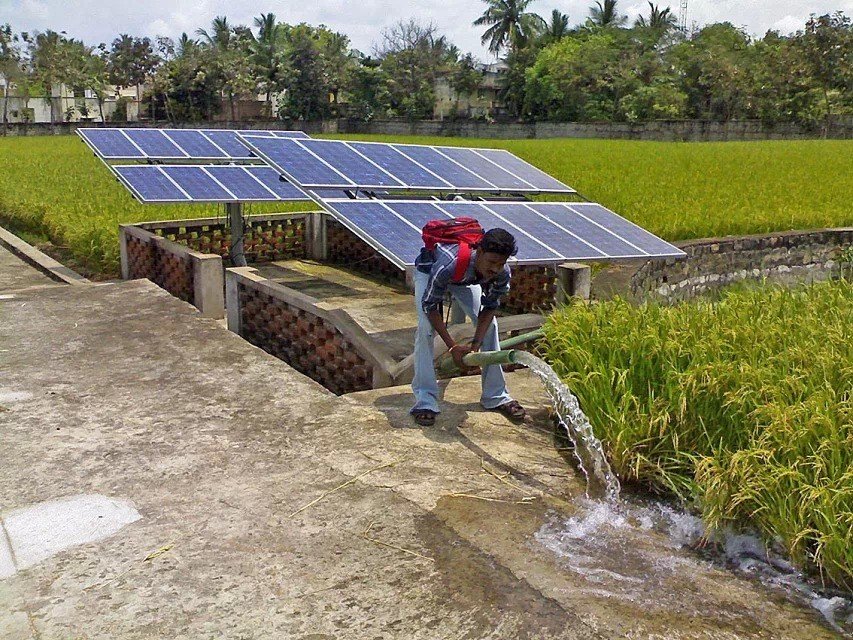

1. Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system

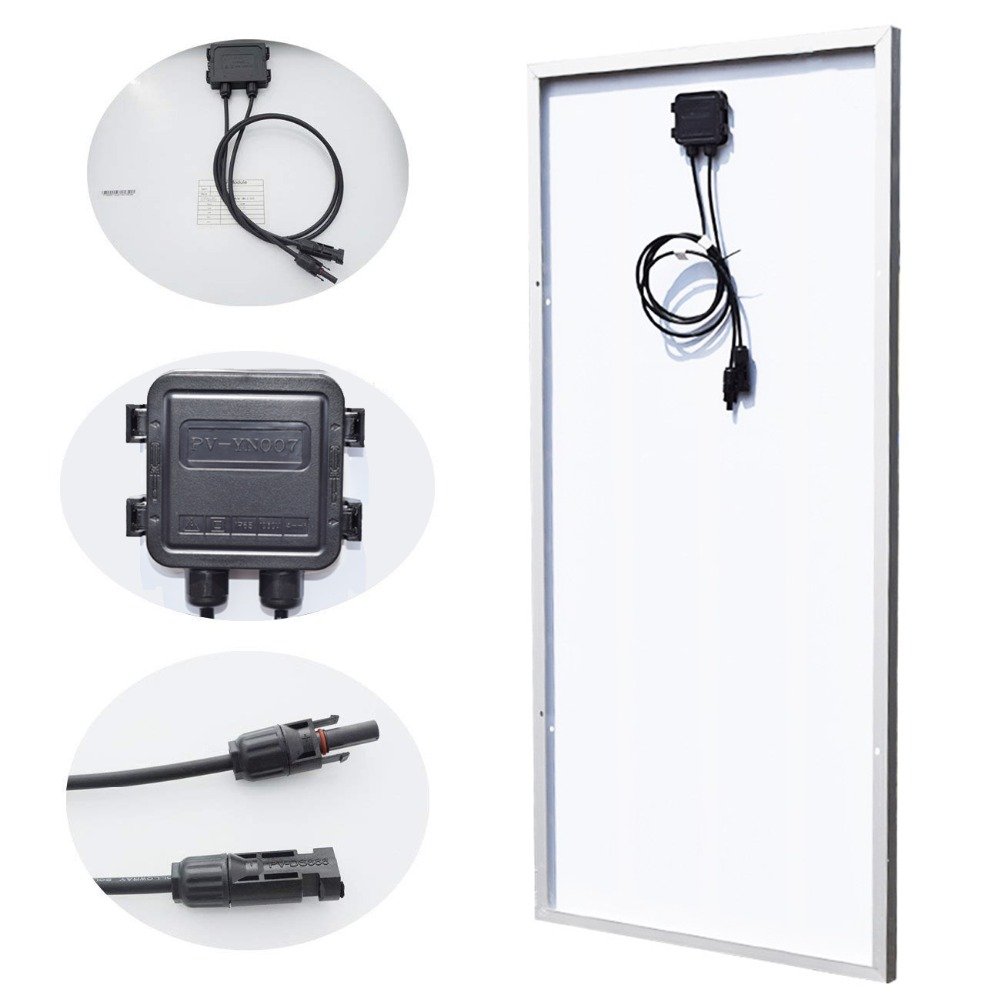

2. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connector.
3. By-Pass Diode minimized the impact of shade.

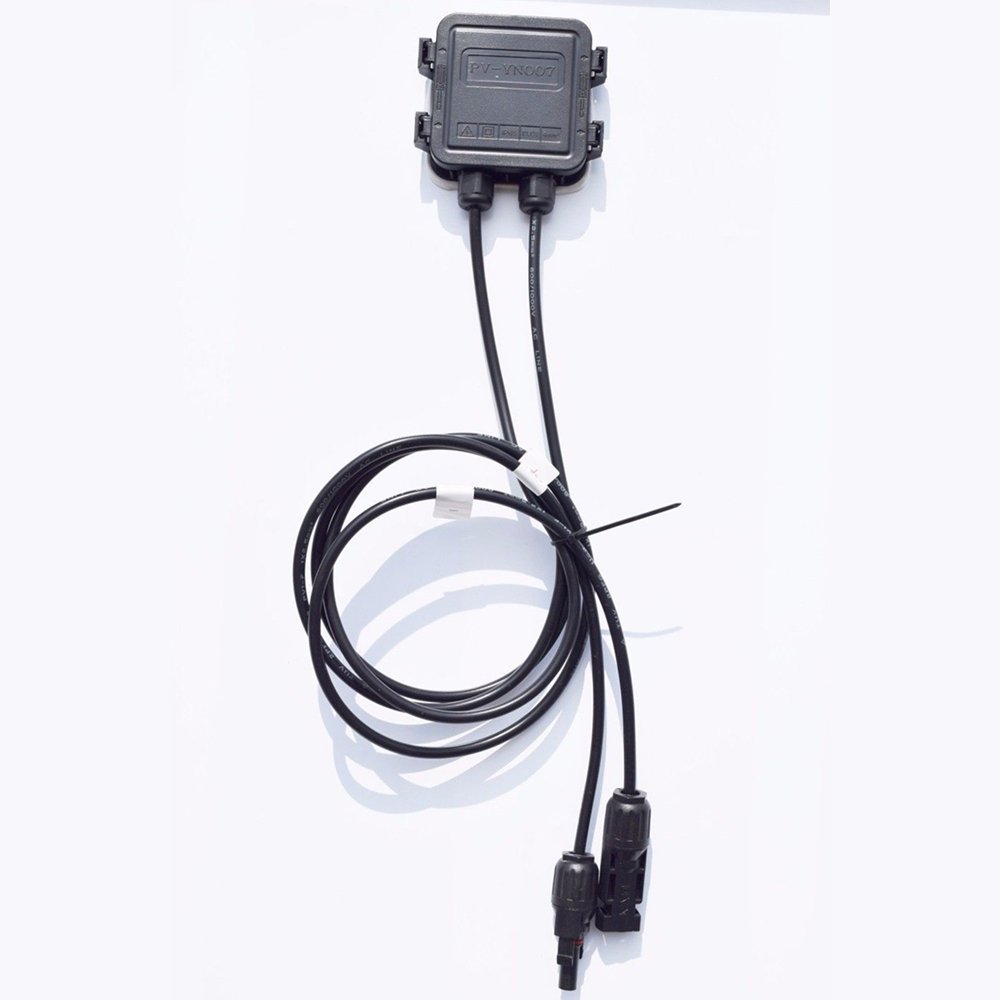

4. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
5. Resistance to Salt Corrosion and Humidity
6. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades，25 years of service life
as well as withstand high winds (2400Pa) and snow loads (5400Pa),

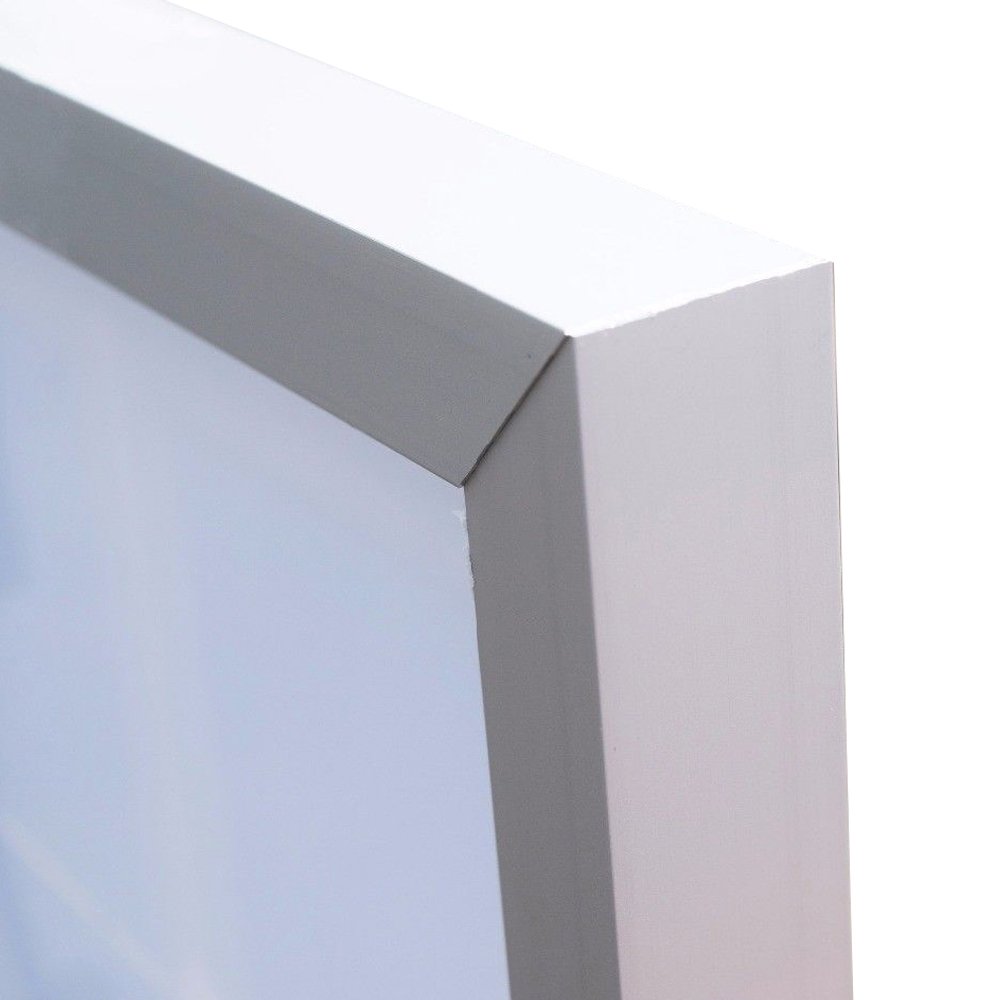

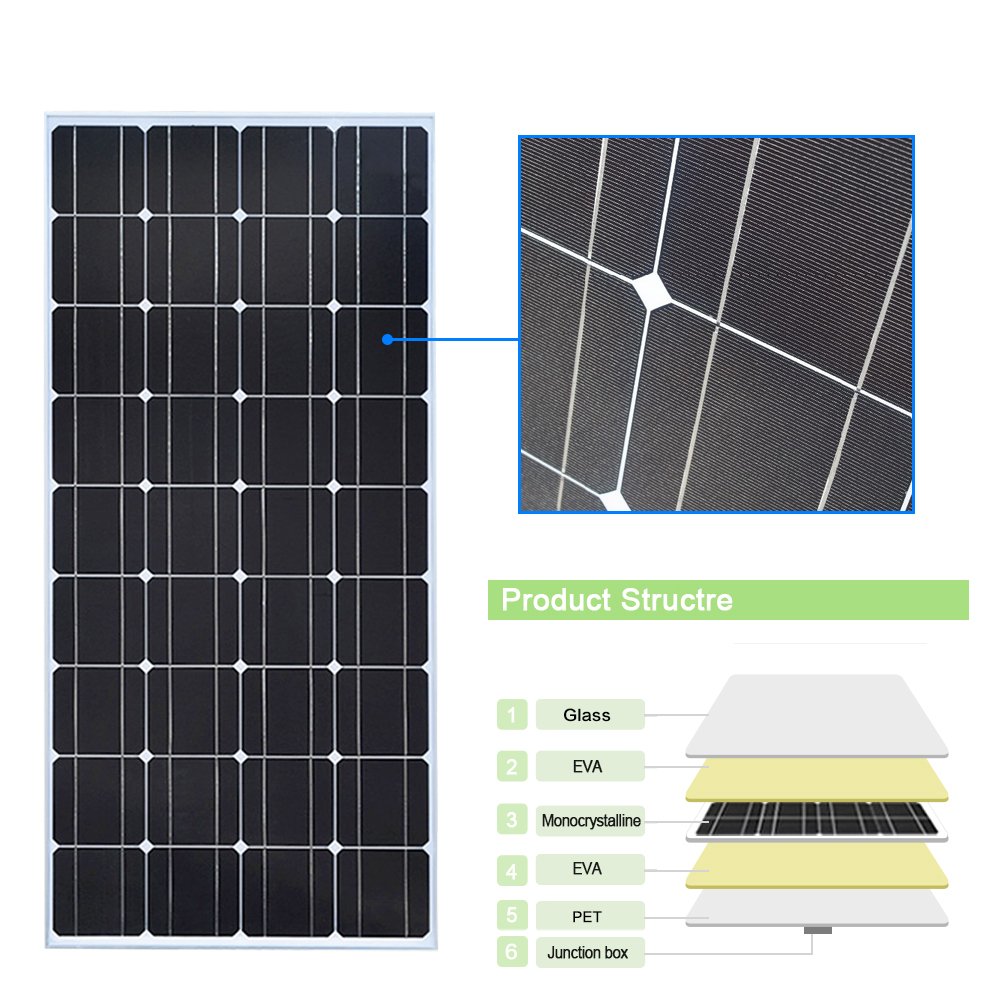

Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
Specification:
| Rated Power | 100 Watt |
| Operating Voltage(Vmp) | 18Voltage |
| Open circuit voltage（Voc） | 21.6 Voltage |
| Short circuit current (Isc) | 6.06 A |
| Working current (Imp) | 5.55A |
| Output Tolerance | ±3% |
| Max System Voltage | 1000V DC(IEC)/600V DC (UL) |
| Diode | 2 By Pass |
| Junction Box | IP 65 Rated |
| Temperature range | -40 Degree to 80 Degree |
| Frame | Heavy And Solid Aluminum Alloy |
| Kind of Glass | 3.2 MM Tempered glass |
| Output Cable | 2.5MM 90MM(0.09*3.54Inches) |
| Dimensions | 1160*530*25MM |
| Weight | 6.5Kg |
 |
