Description

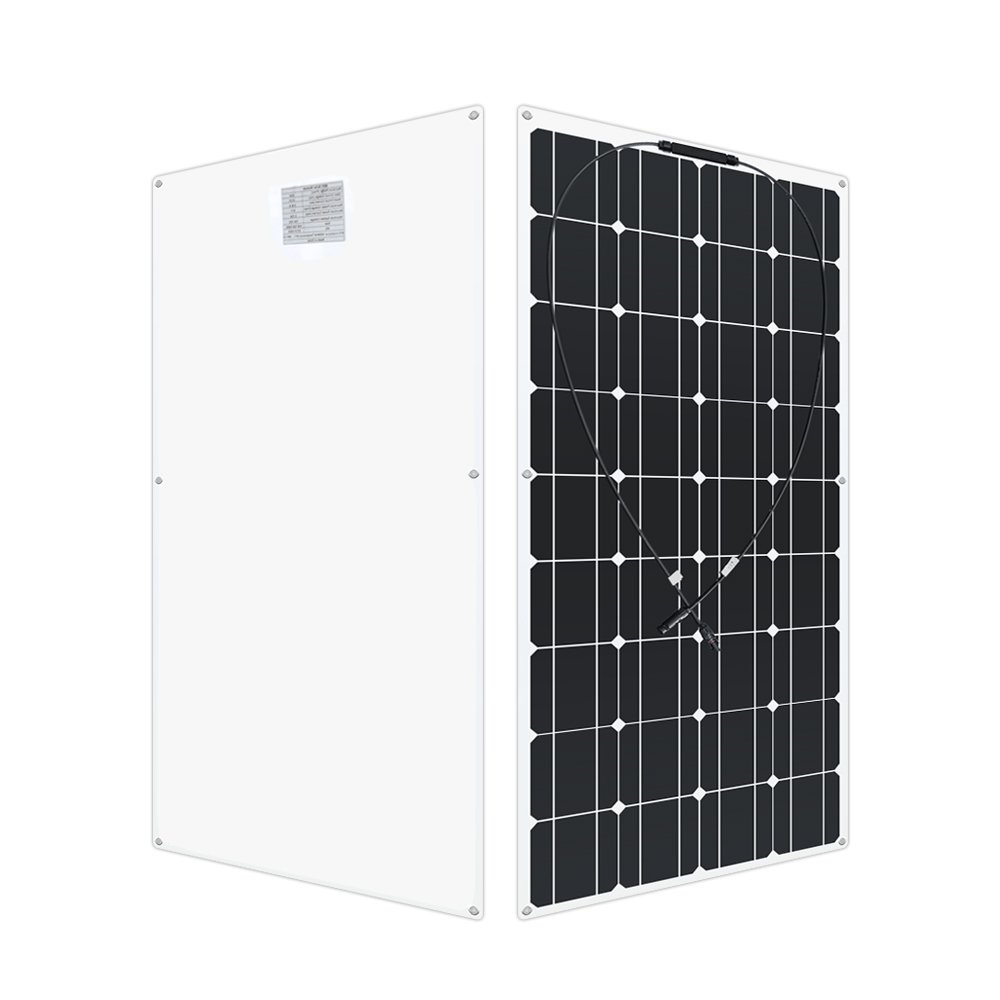

Xinpuguang 100 W flexible solar panel kit 12v 100 watt 120w 200w for Home Yacht RV Caravan Cabin Boat and 12v Battery Charger
Specification

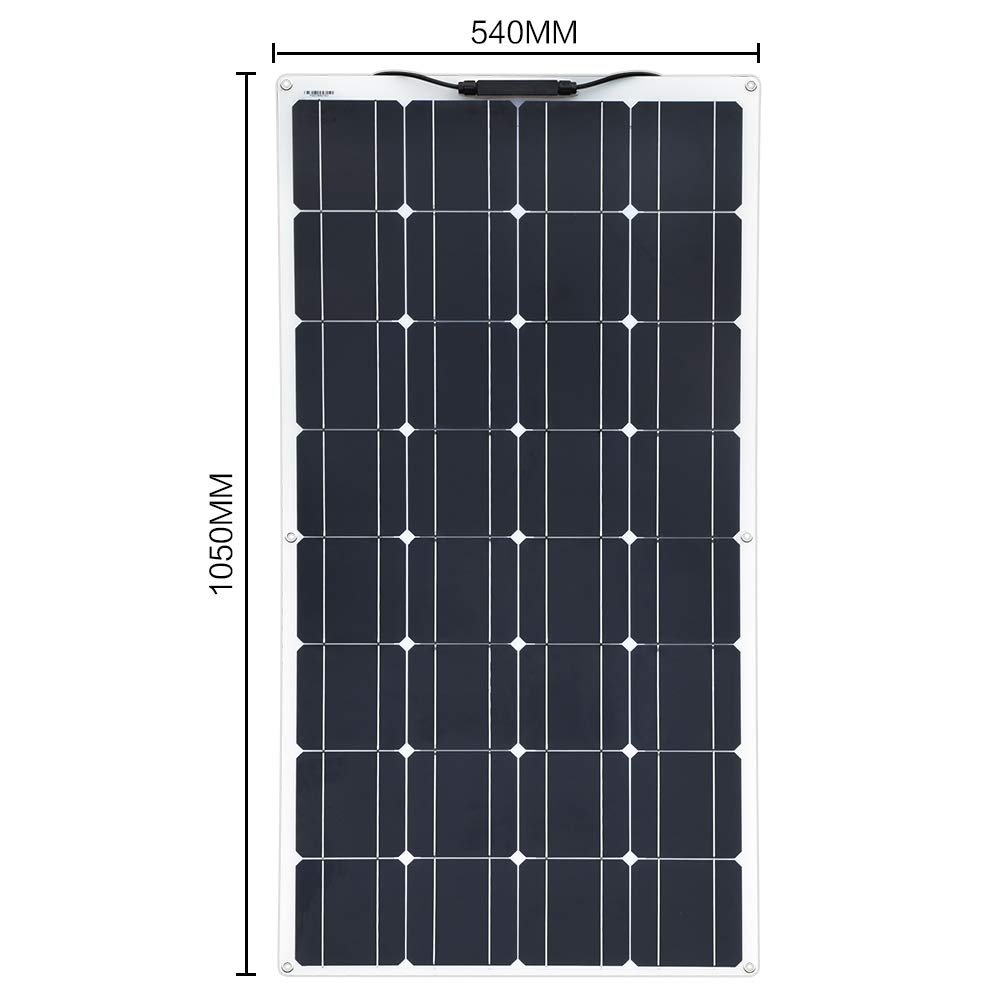

Maximum power(Pmax) 100W Maximum system voltage 700V DC Open circuit voltage(Voc) 19.2V Short circuit current(Isc) 6.87A Maximum power voltage(Vmp) 16V Maximum power current(Imp) 6.25A Number of cells 32pcs Weight 1.8KG Size 1050*540*3 mm Operating temperature(NOCT) 45 plus or minus 2 Celsius system STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
High efficiency

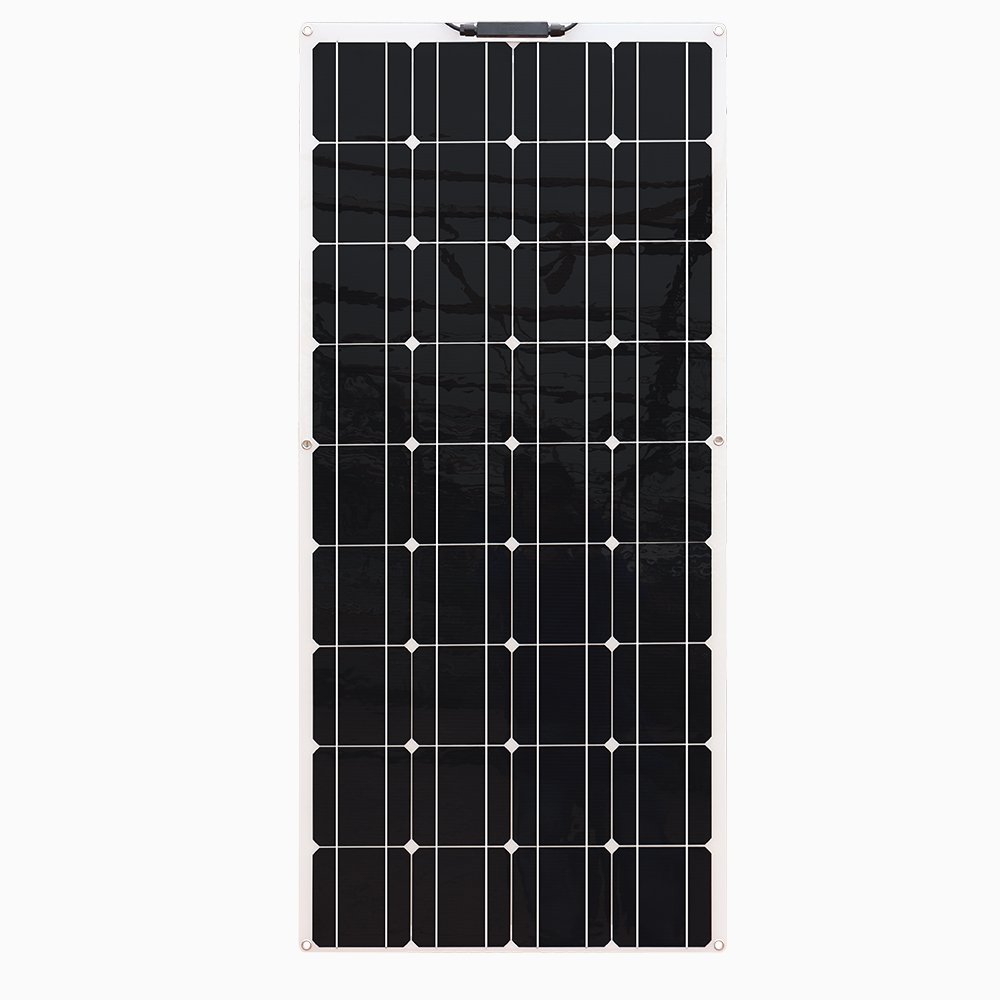

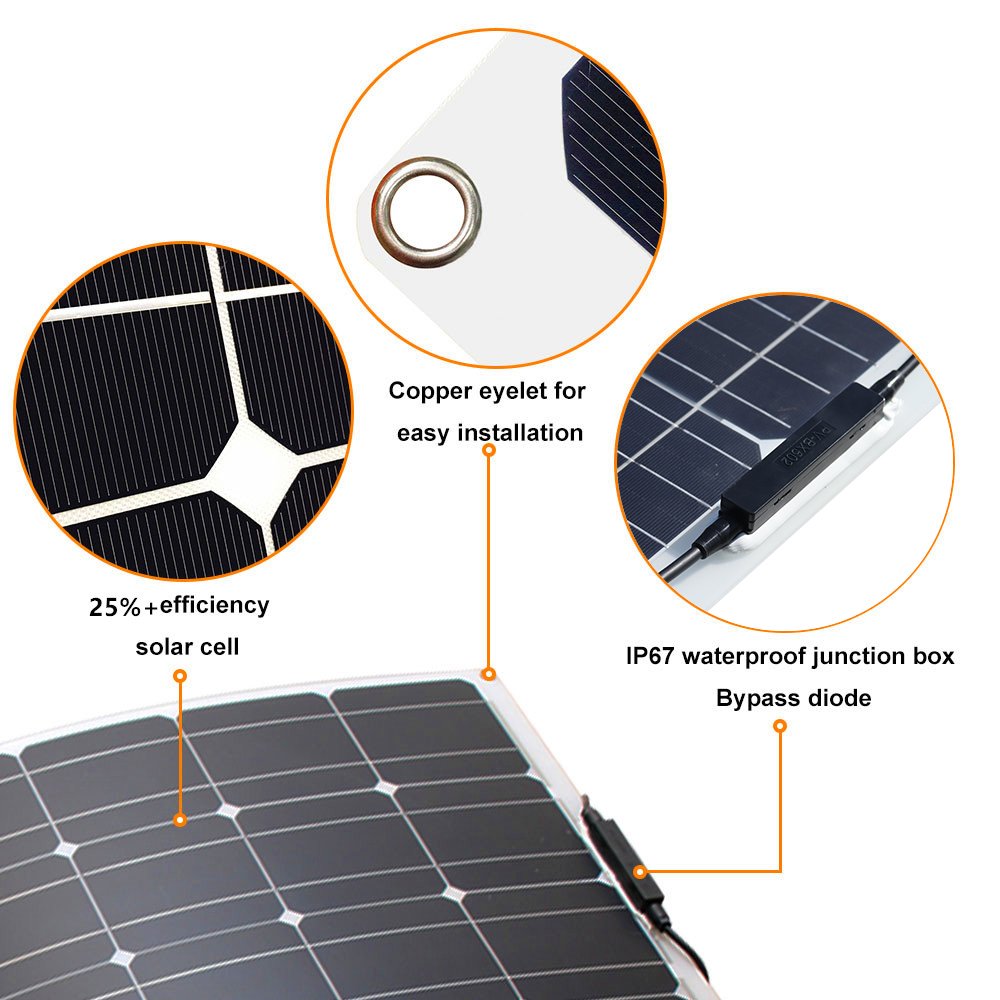

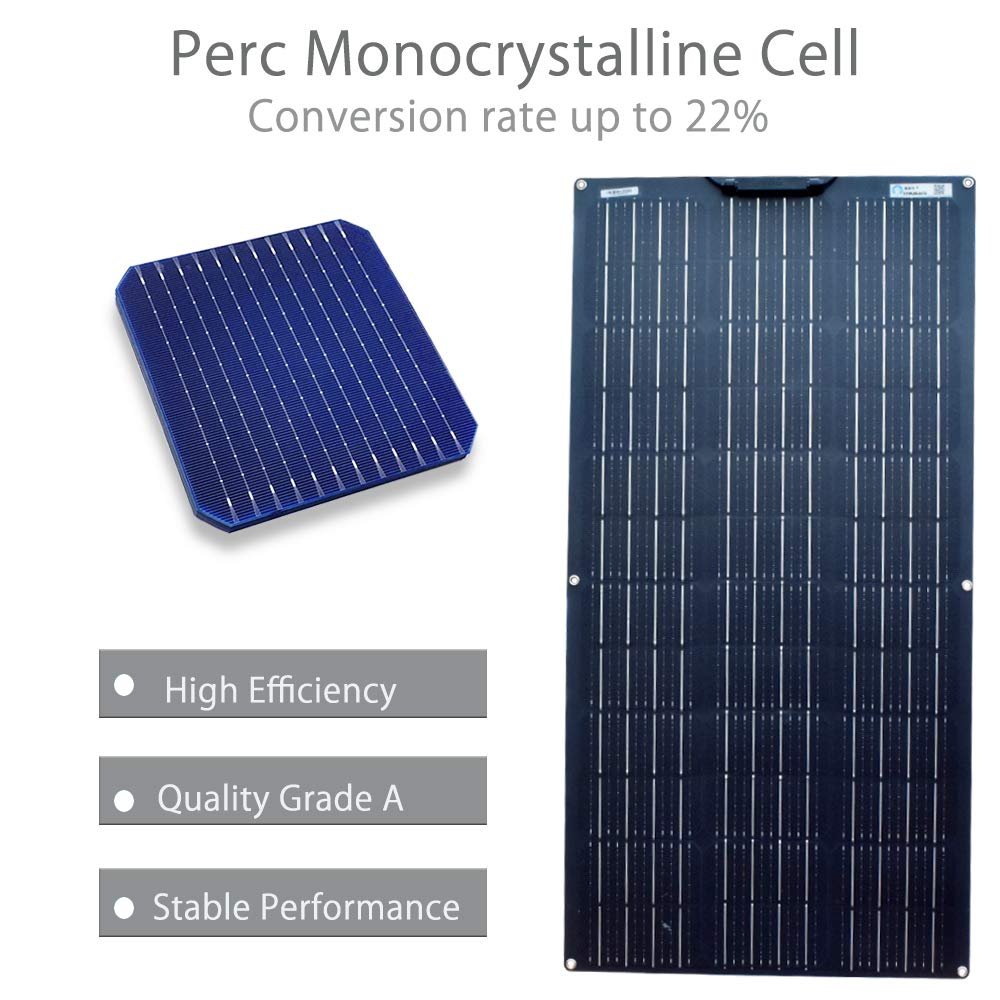

High efficiency single crystal solar panel, conversion of solar panel is protected to 21% Bypass diodes minimize shadow power loss and provide excellent performance in dark environments
Super lightweight
Thanks to advanced polymer materials, the product weighs 70% lighter than traditional solar panels, making it much easier to transport and install, making it easier to carry, transport and install.
Ultra-thin
You will hardly notice that it is thin. The solar panels are flat because they are only 1/10 inch high. The panels are about 95% thinner than their rigid panels, making them ideal for stealth solar equipment that fits perfectly on the roofs of yachts and caravans. It is easy to install and can be installed with glue, glue, screws and corner guards (for fixing and mounting screws).
Rounded corners prevent scratches

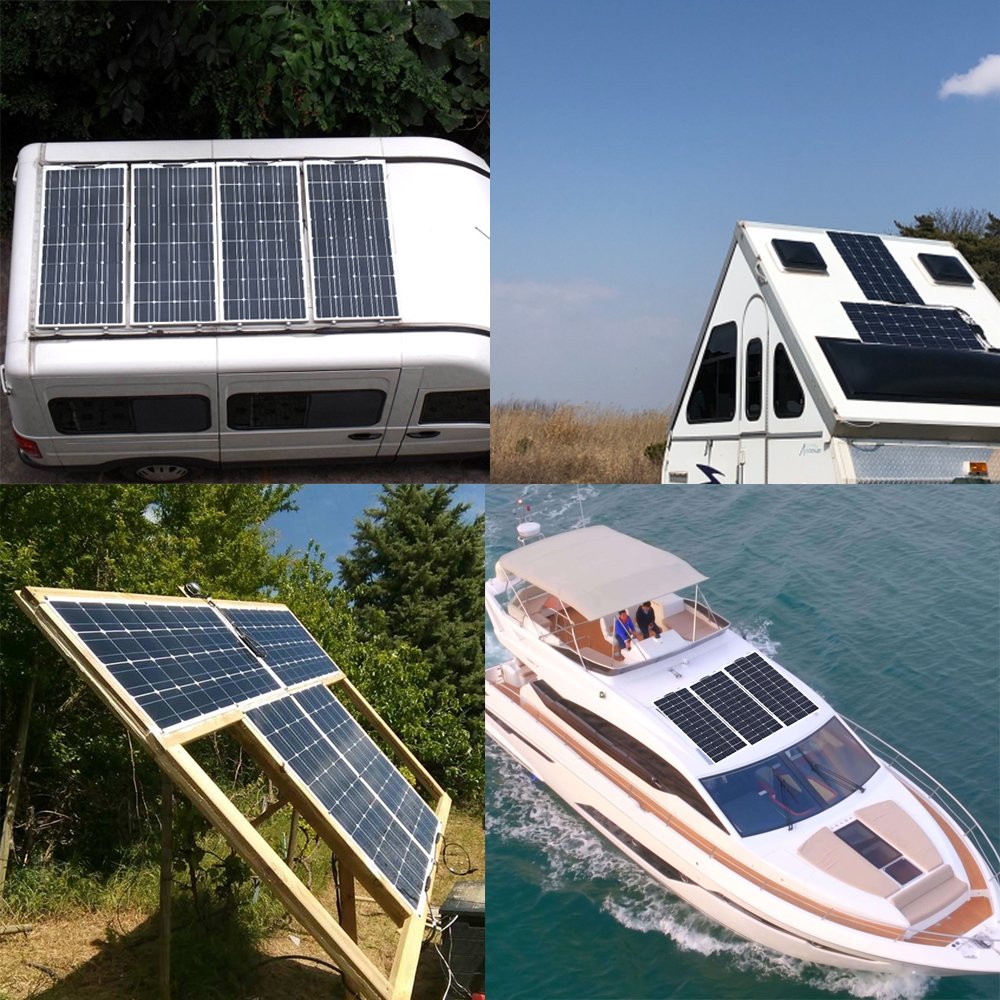

Widely used applications: golf carts, yachts, ships, caravans, electric cars, tourist cars, police cars, roofs, camping, rooftop power generation, tents, backpacks, portable generator sets and more. Charge the 12v battery to solve the problem that the car cannot start due to lack of power.

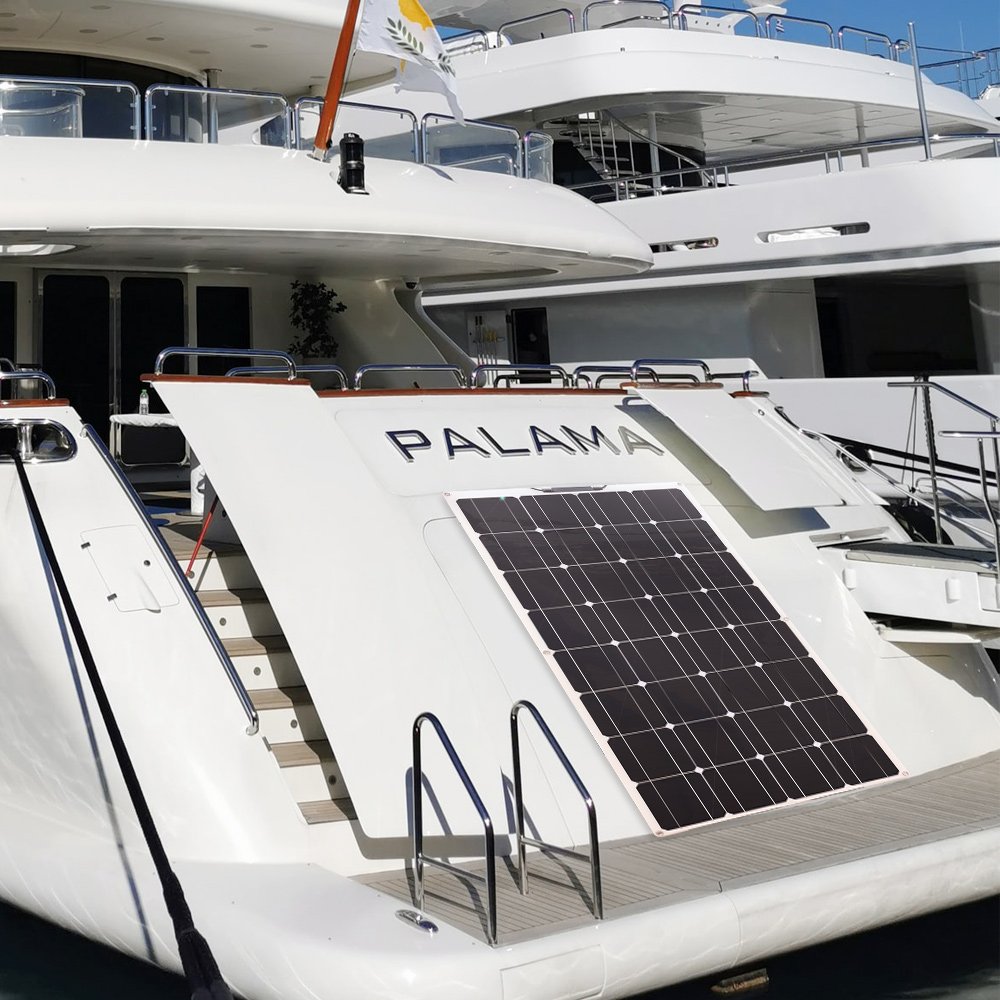

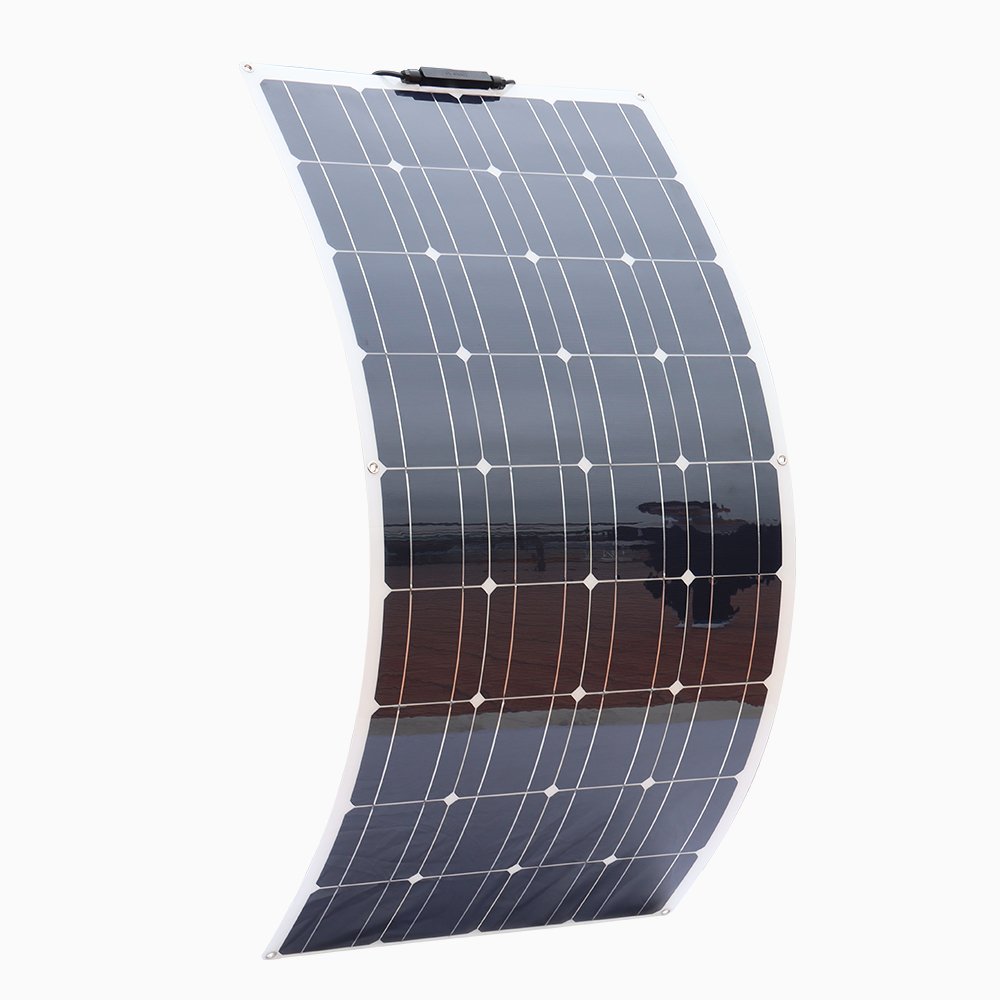

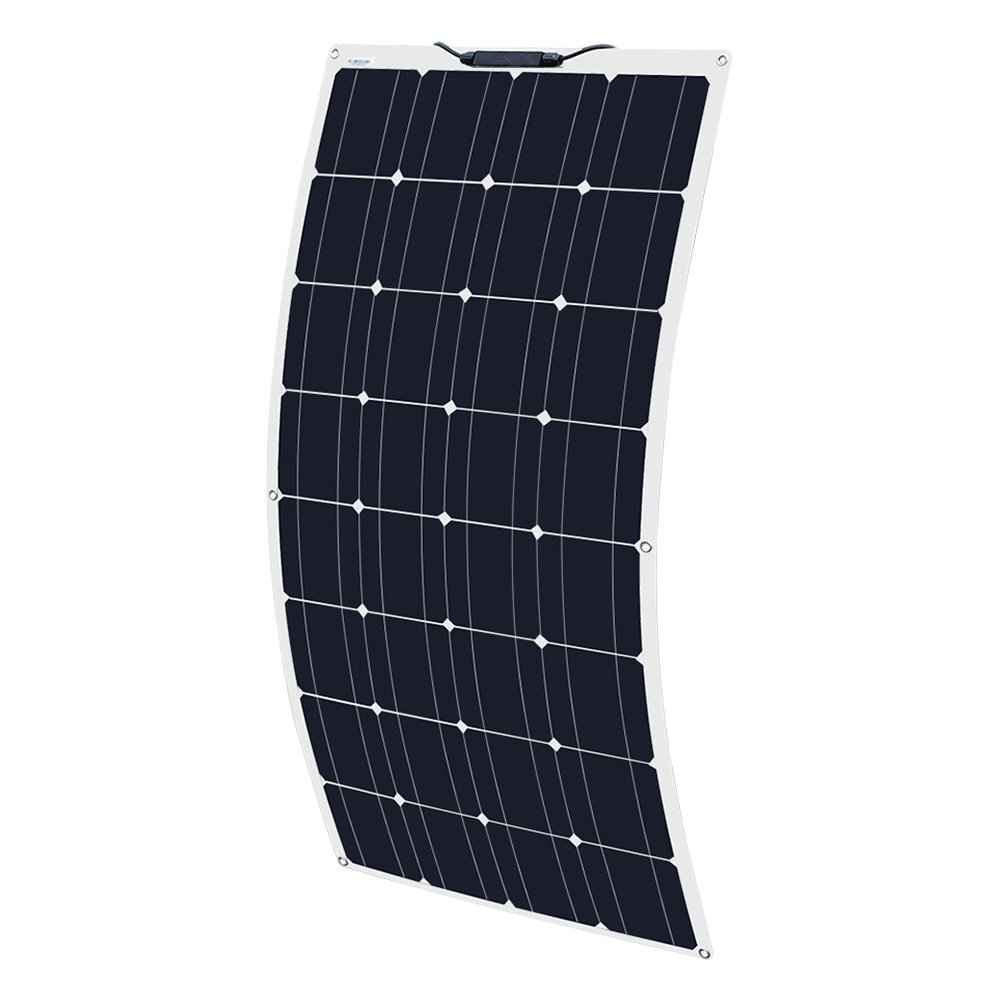

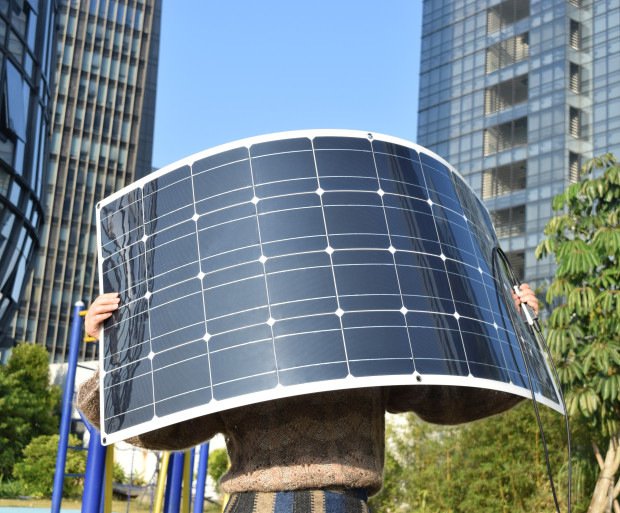

The flexible solar panel can be bent 20 degrees, suitable for yachts, motor homes and has a corresponding tilt

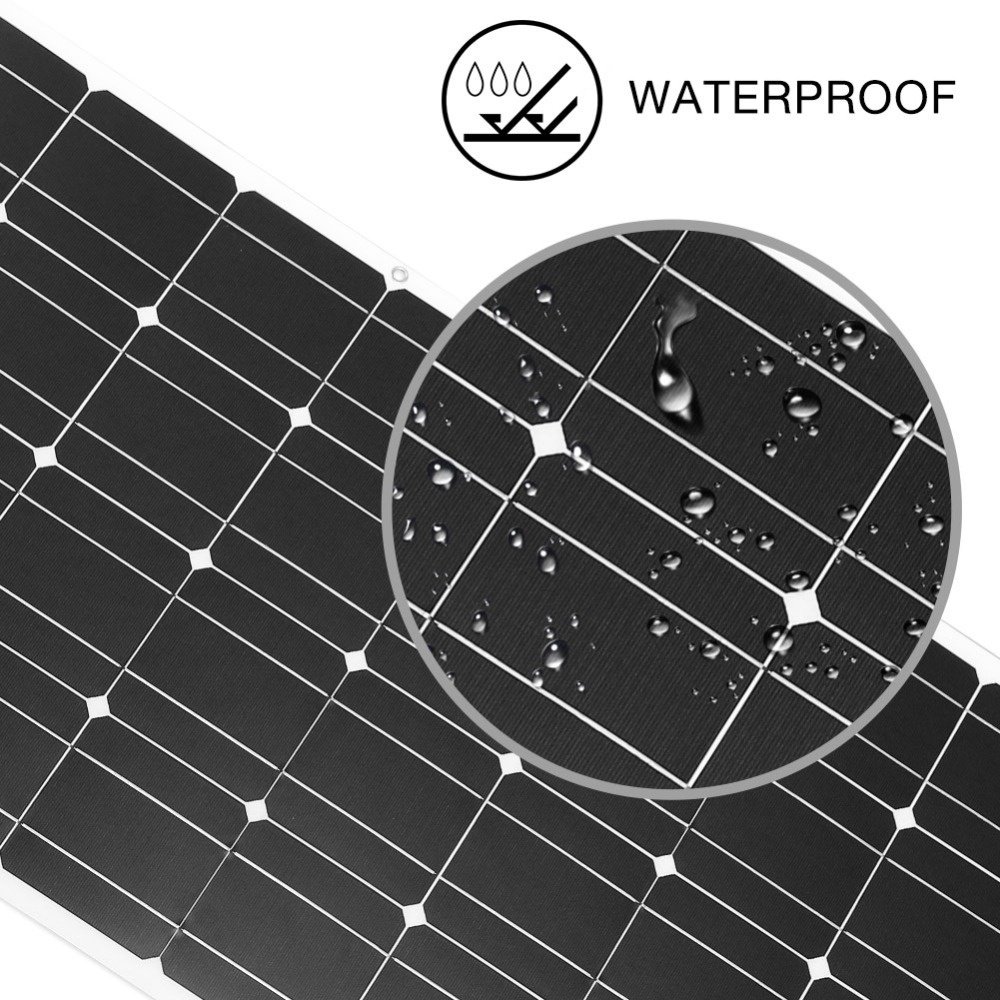

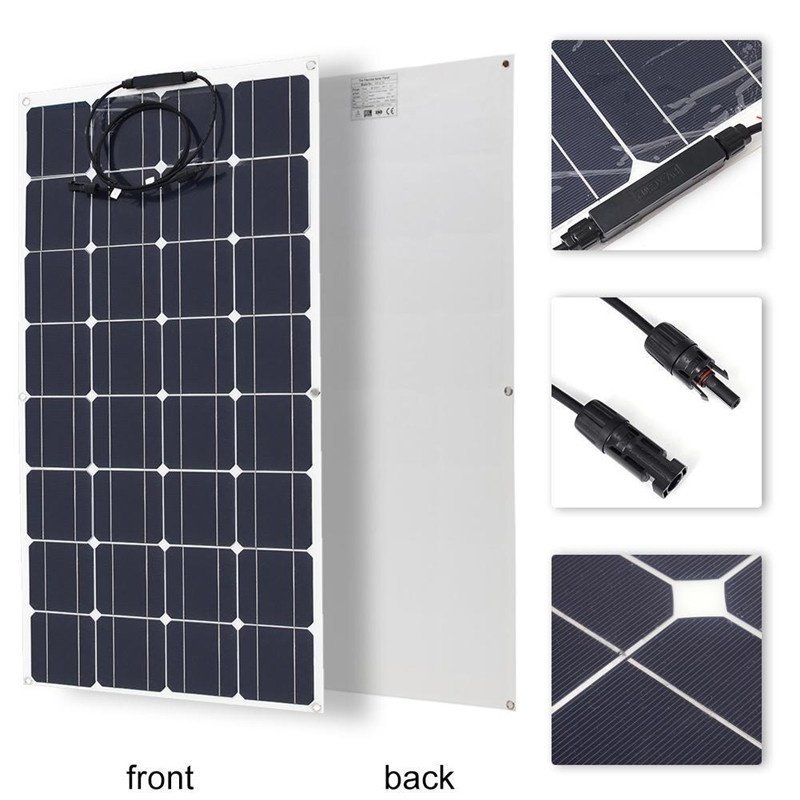

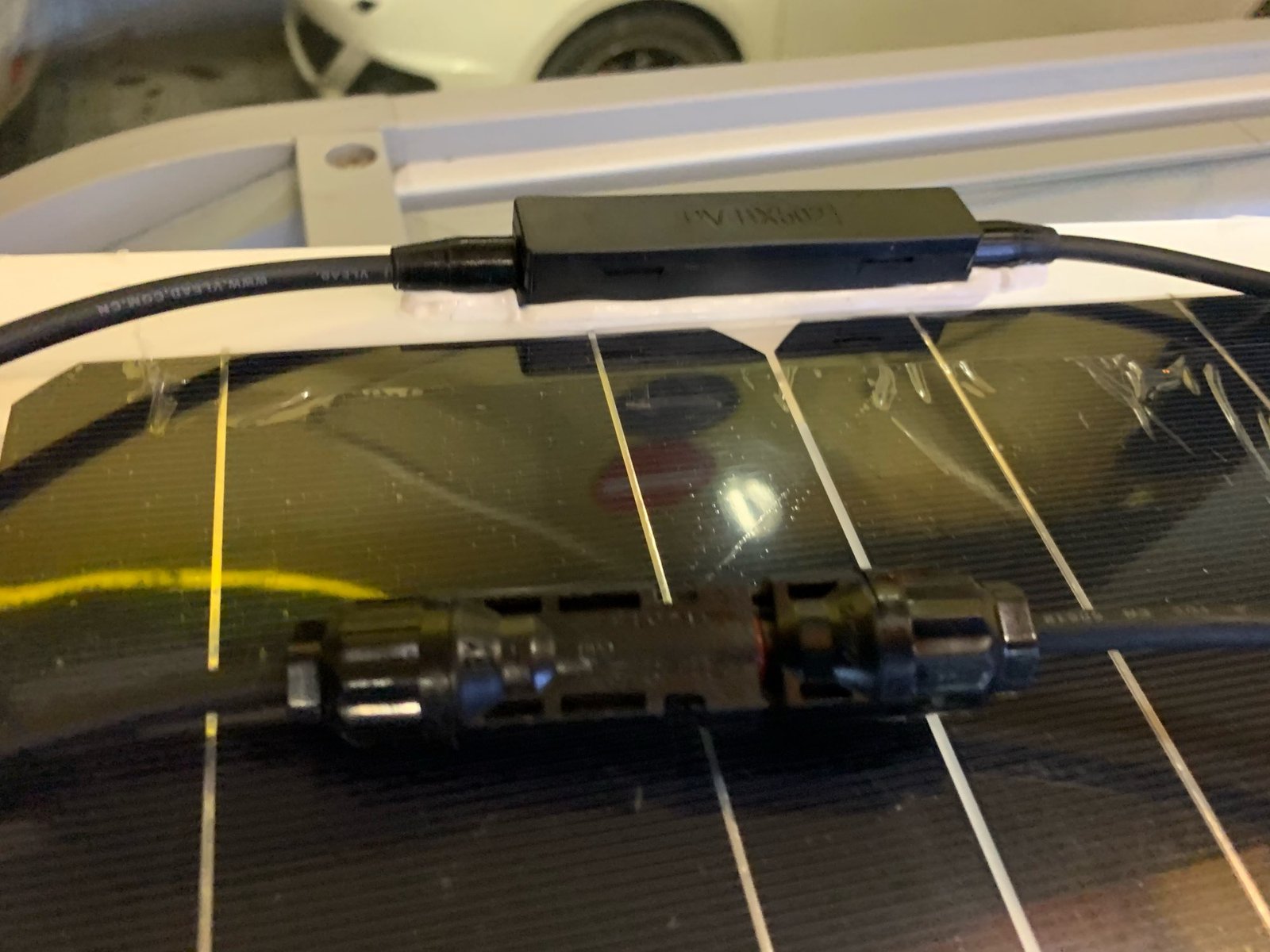

IP67 waterproof junction box, encapsulant inclusion, waterproof level reaches IP68, and can handle rainy weather and seawater except for joints.

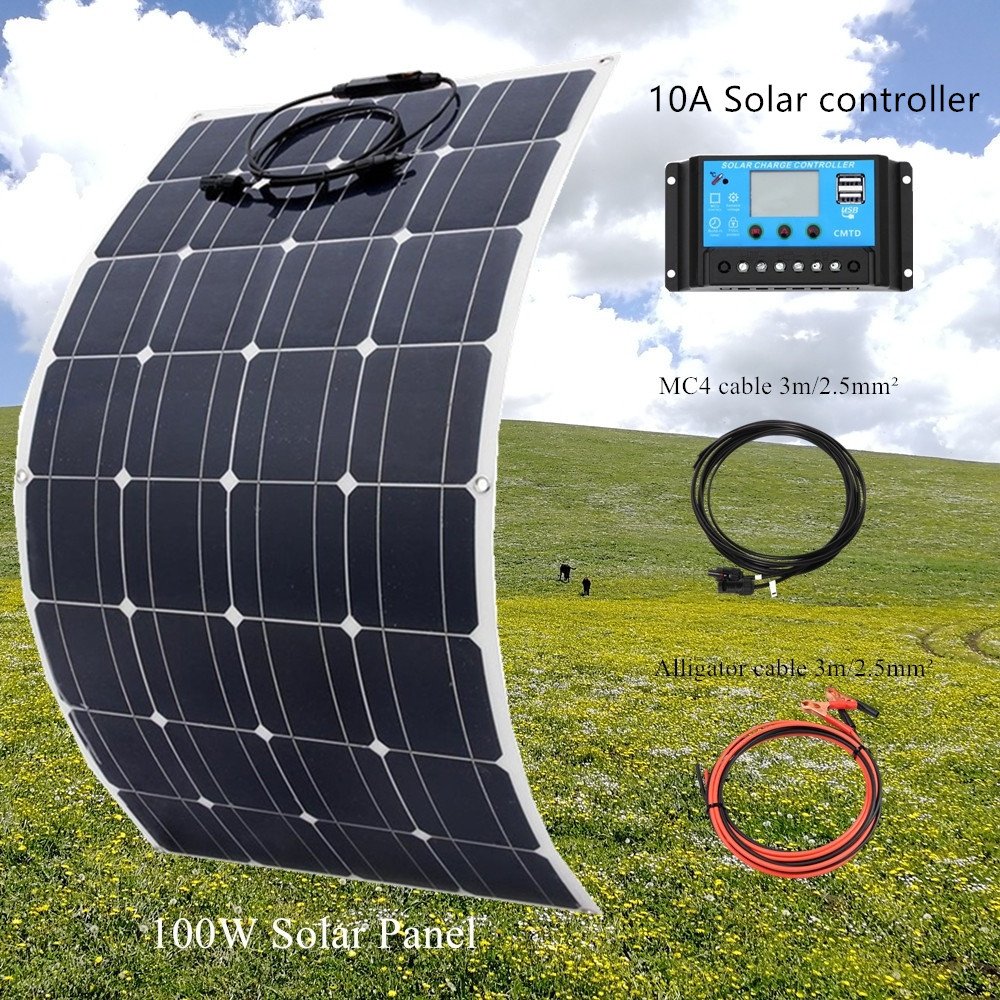

（100W Solar Panel Only）Package Includes:
1 pcs flexible solar panel

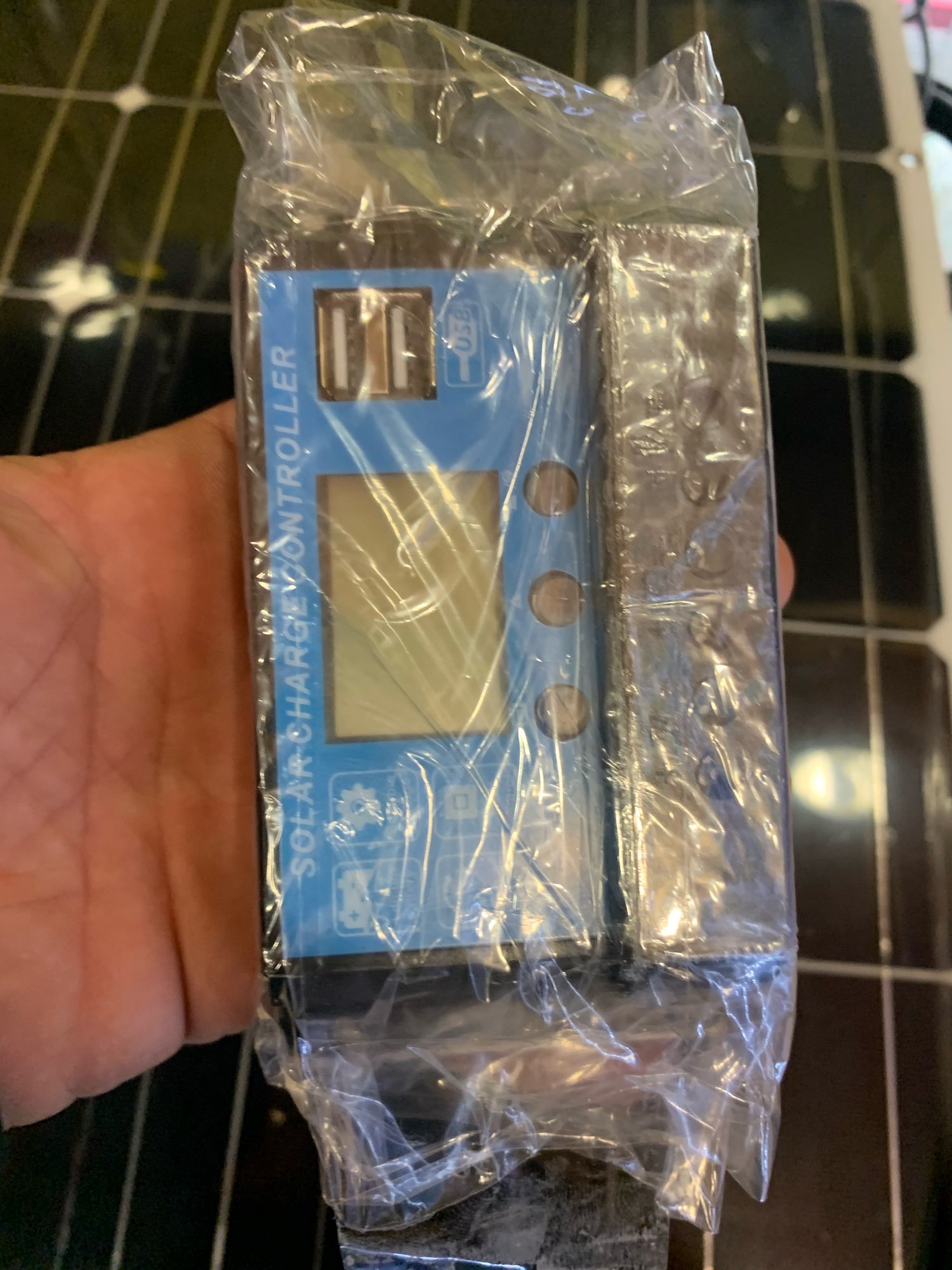

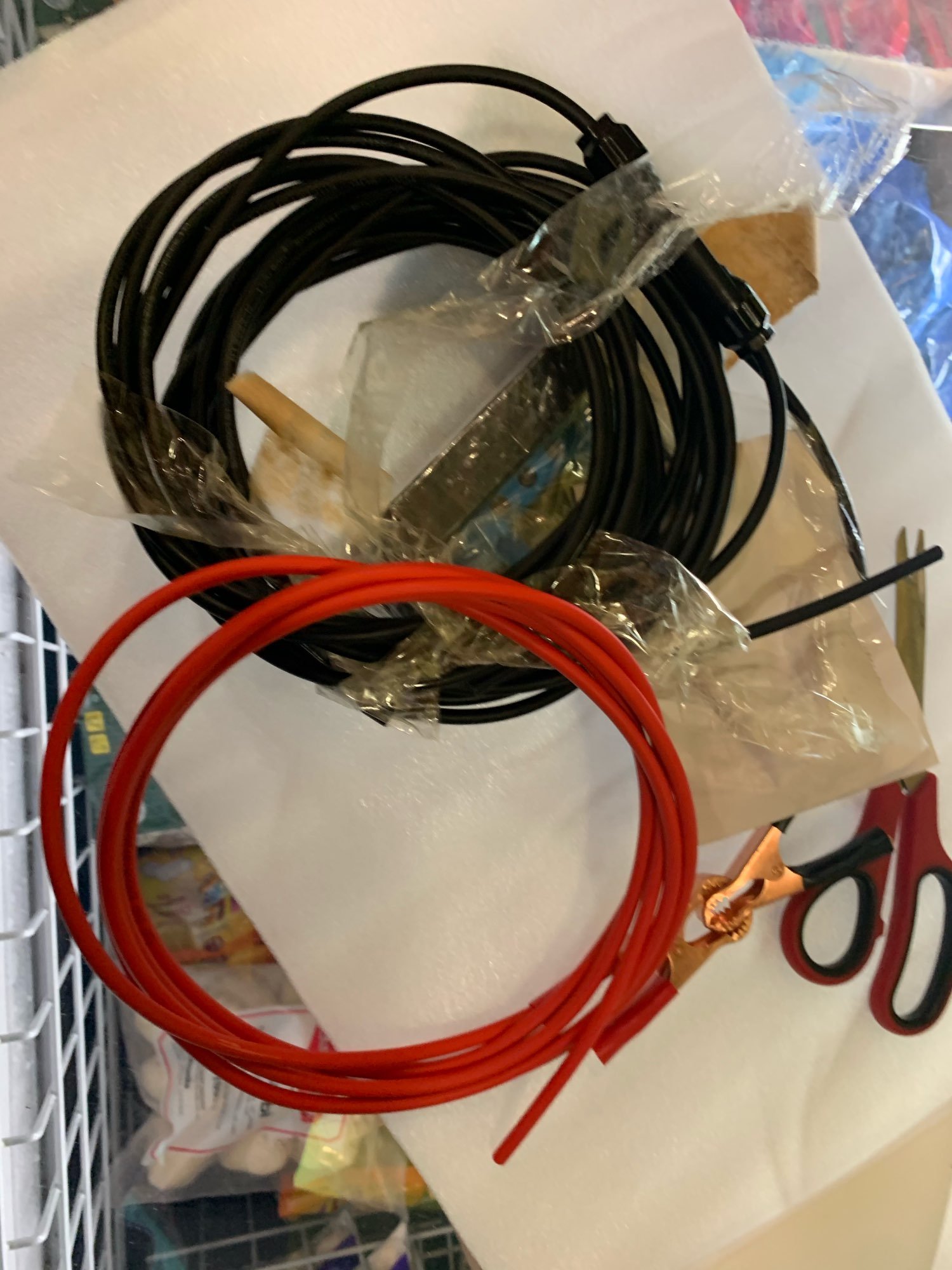

1. 1 pcs flexible solar panel 2. 1pcs 12v/24v/10A controller 3. 1 set 3m cable with PV connector(2.5mm2) 4. 1 set 3m cable with Alligator clip(2.5mm2)

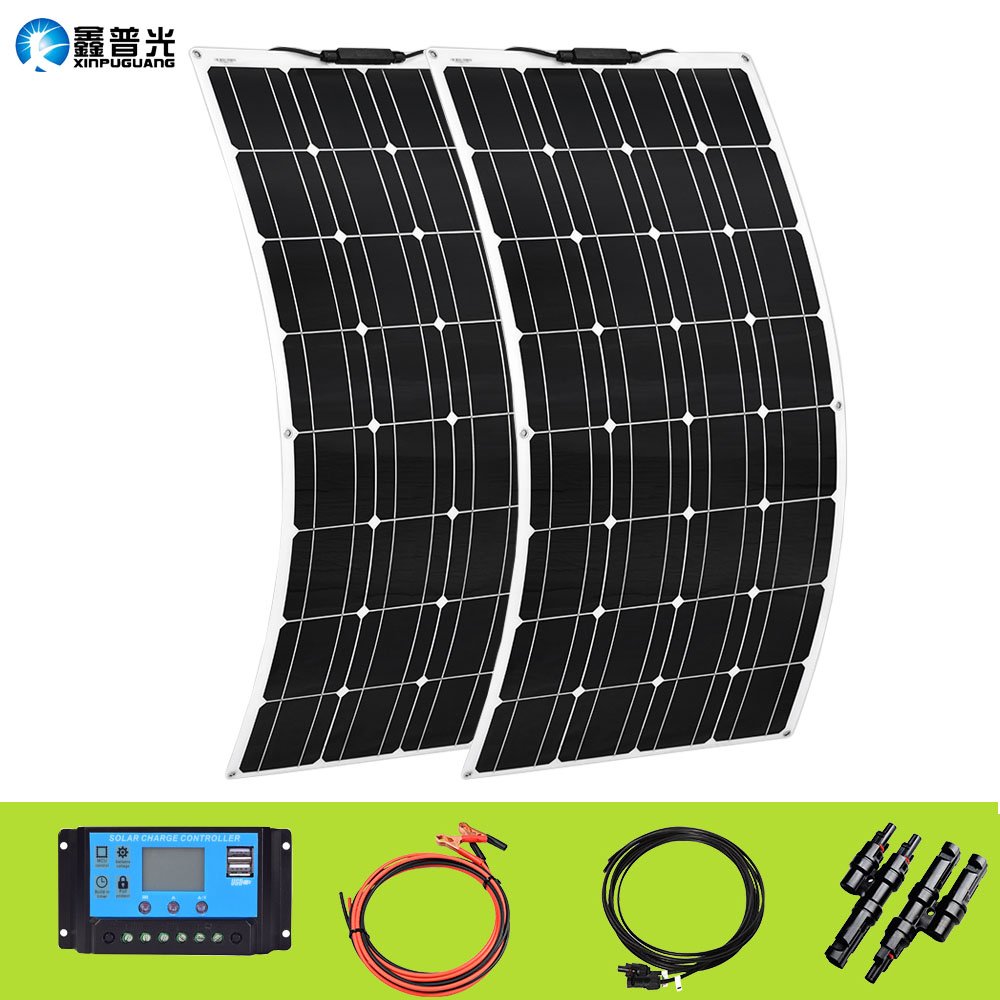

（200W Solar kit）Package Includes:
1. 2pcs 100w solar panel 2. 1pcs 12v/24v/20A controller 3. 1 set 3m cable with PV connector(2.5mm2) 4. 1 set 3m cable with Alligator clip(2.5mm2) 5. 1 set 2 in 1 adapter
18V 120W Solar panel Specification
Maximum power(Pmax) 120W Output tolerance ± 3% Maximum system voltage 700V DC Open circuit voltage(Voc) 21.6V Short circuit current(Isc) 6.8 A Maximum power voltage(Vmp) 18V Maximum power current(Imp) 6.6A Operating temperature（NOCT） 45±2℃ Temperature range -40℃～+80℃ Number of cells 36pcs Weight 2200g Size 1170*540*3 mm Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Solar panel
– It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead acid battery. – It is waterproof and can be placed outdoors. – There are built-in diodes in the Junction Box to help prevent reverse charging. – You can install this item in your car and keep charging during the day. – Provides 2 alligator clips and charging cable for all kinds of equipment, emergency lights, advertising lights, traffic lights, electric fans, solar water pumps, motorcycles, boats, etc.

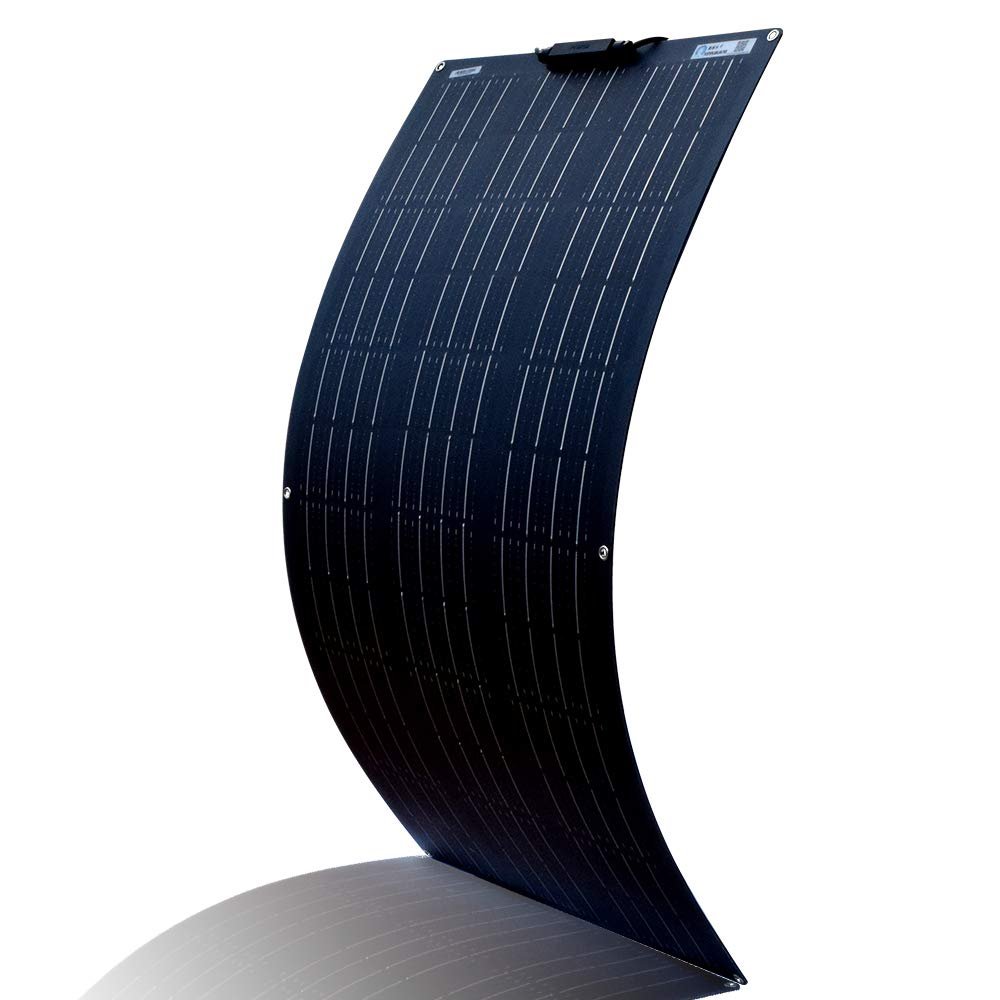

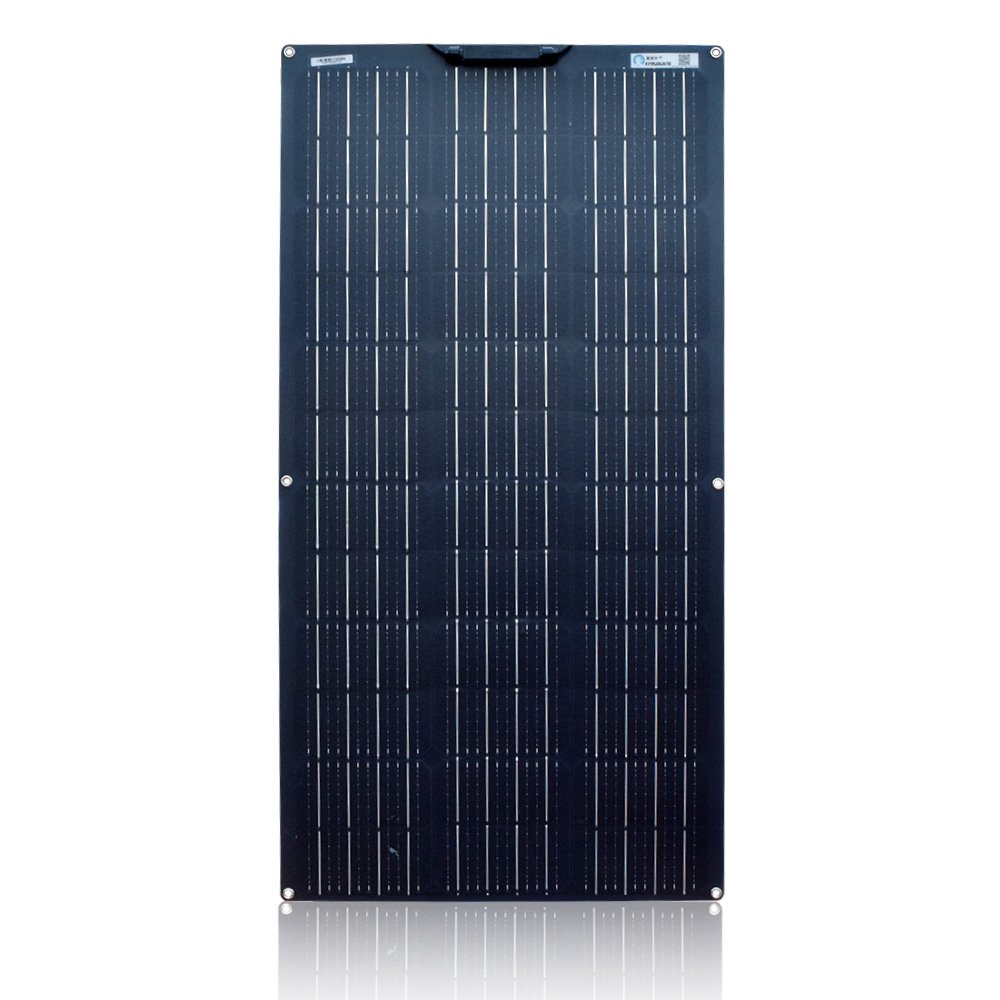

18V 100W Black( 18 V 100 watt Black solar panel)
Maximum power(Pmax) 100W Output tolerance ± 3% Maximum system voltage 700V DC Open circuit voltage(Voc) 21.6V Short circuit current(Isc) 6.11 A Maximum power voltage(Vmp) 18V Maximum power current(Imp) 5.55A Cell efficiency 21% Operating temperature（NOCT） 45±2℃ Temperature range -40℃～+80℃ Number of cells 36pcs Weight 1850g Size 1030*525*3 mm Color White Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

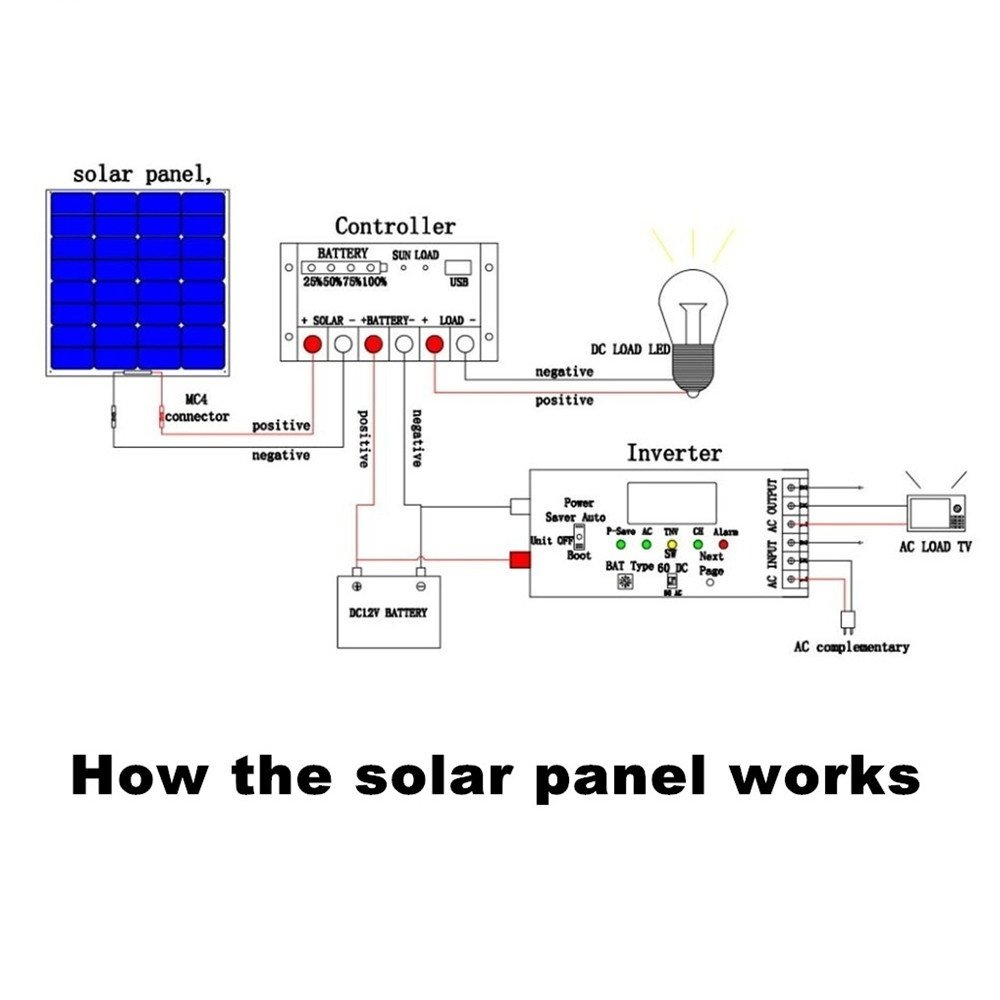

Schematic diagram of 1 solar panel connected to 12V battery

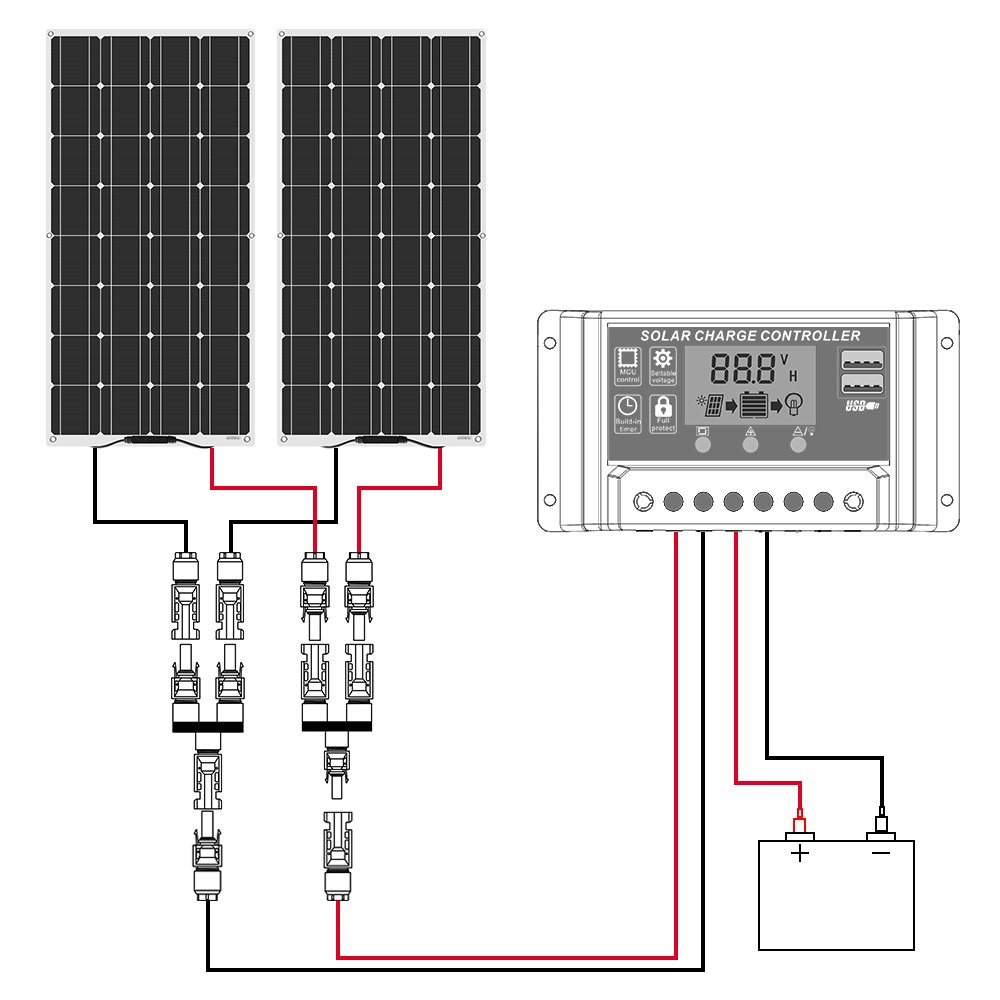

Schematic diagram of 2 pcs solar panel connected to 12V battery

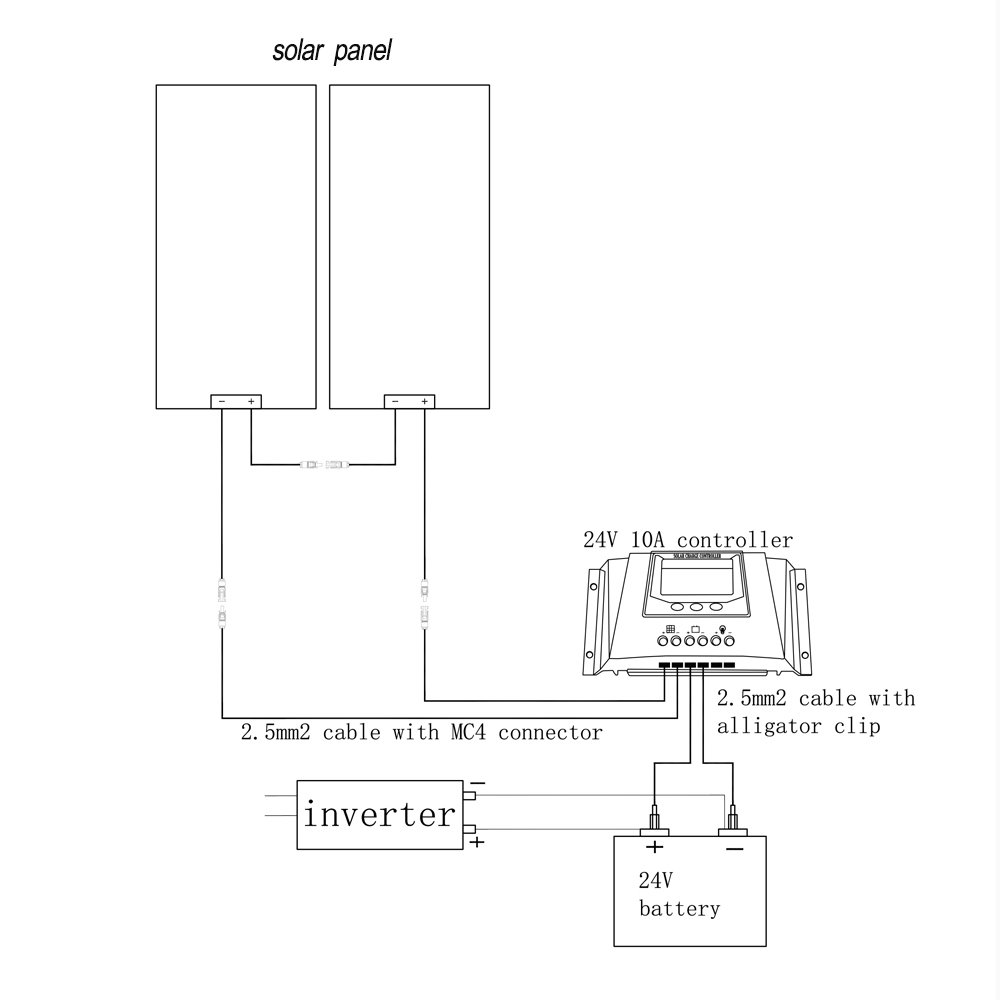

Schematic diagram of 2 pcs solar panel connected to 24V battery
Shipping Information
For Europe Client: Ship from Spain or Czech or Belgium Warehouse, Including VAT TAX, 3-10 days arrival via DHL or Post, DPD. For USA Client: Ship from USA Warehouse, Including VAT TAX, 3-10 days arrival via Post, UPS. For Russia: Ship from Moscow Warehouse, Including VAT TAX, Fast arrival via Russia Post. More Oversea Warehouse will open later. For Spain Island and France Island, there may be extra remote freight cost, so if there were remote cost, then we will contact with buyer. For USA Client: there are remote area as well, so if your area belongs to remote area, we will contact with you as well. This product we set up warehouse in Spain，When you buy it,if you are in EU,we will ship to your country that you don’t need to consider customs clearance and duties and it will be fast delivery. However， the zip code in Spain that starts with 07,35, 38, 51, 52. the zip code in France 20001-20999,97100-97699,98400-98899. the zip code in Italy that starts with 22,23,47,69. the zip code in Denmark 100-999,3900-3999. the zip code in Portugal 9000-9900. Mont Athos in Greece. the zip code in Finland 2200-2299 Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain.s
Susann Masson –
looks good, quick delivery, will write more when installed
Dieter Krist –
Product ordered on 28th November 2020 and arrived on 19th December 2020. Although the shipping was quite fast but the seller gave a fake tracking number by DHL, then he changed the tracking number with another one but from another shipping courier, and again the tracking information were not clear. The product itself is working fine with no issues. I will test the output power of the solar panel soon as the weather being clear.
Olevia Lauder –

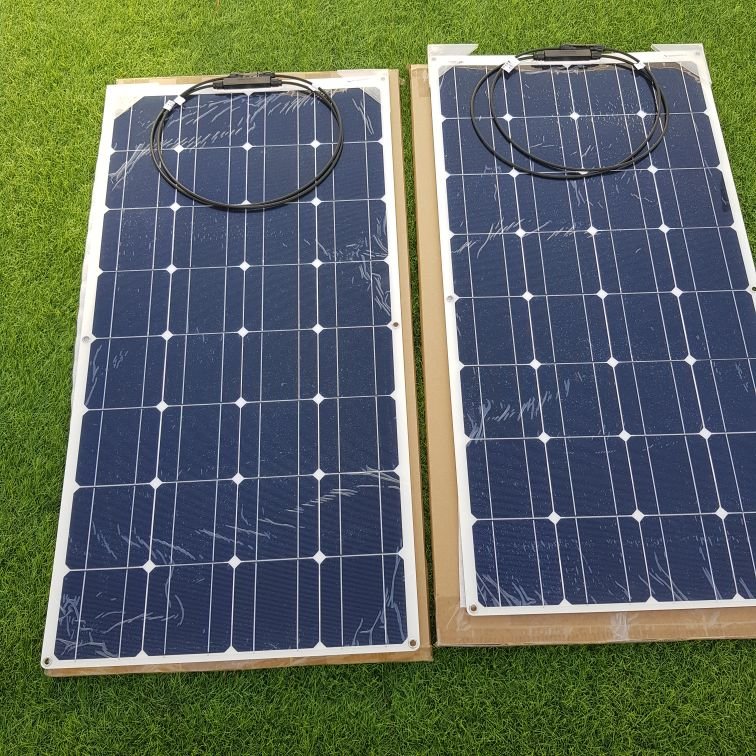

Excellent solar panels fast shipping from local warehouse very good packaging
Joseph Garreau –
Excellent
Alpha Um –
The goods are delivered during the packaging neat!
Wendi Raver –
Fast delivery, well packet.same as described . I didn’t test on good sunny day(at home is winter time) . As advice can use better controller.I recommend a seller.
Gérald Noir –
It is a pity that solar technology is so expensive today …
Sarina Santos –

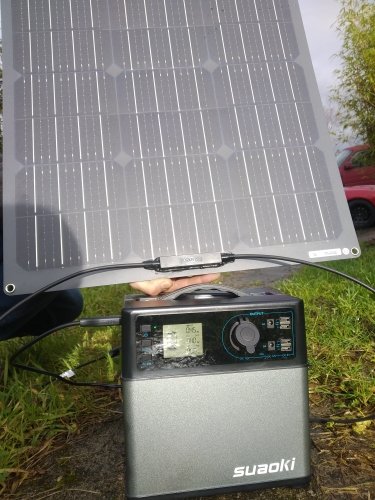

Shipped in 5 days to Iceland! Fastest shipping iwe ever seen on ali. Solar panels tested in shade… and did pick up good charging and very nice voltage compared to shade! Did notice plugd on panels where marked – on the + cable but other than that this looks solid purchase. Highly recomended
Kholmatzhon Daniarov –
Thank you Europe!!!! without breakage and without problems!!!! within a week delivered to the house!!!! thank you!!! everything works or works.
Jaqueline Phipps –
Super fast delivery
Lakisha Mullenix –
Thank you, Very nice panel. I will test in the morning. Looks good from appearance.
Takako Ream –
I was surprised how quickly this product arrived.
Tandy Hoyte –
Fast shipping 2 weeks via DHL from germany warehouse , one corner of package is lightly broken . Not tested yet . will write after testing.
Eleri Barnes –
Was sent by carrier and placed the number of standard shipping office.
Despite the confusion was sent and delivered fast.
Ted Basye –
Managed to get ~25W out of one panel. The condidions were: Panel facing midday sun directly, Sunny day, March, Moscow, Russia. 1.3A @19V
Carla Poole –

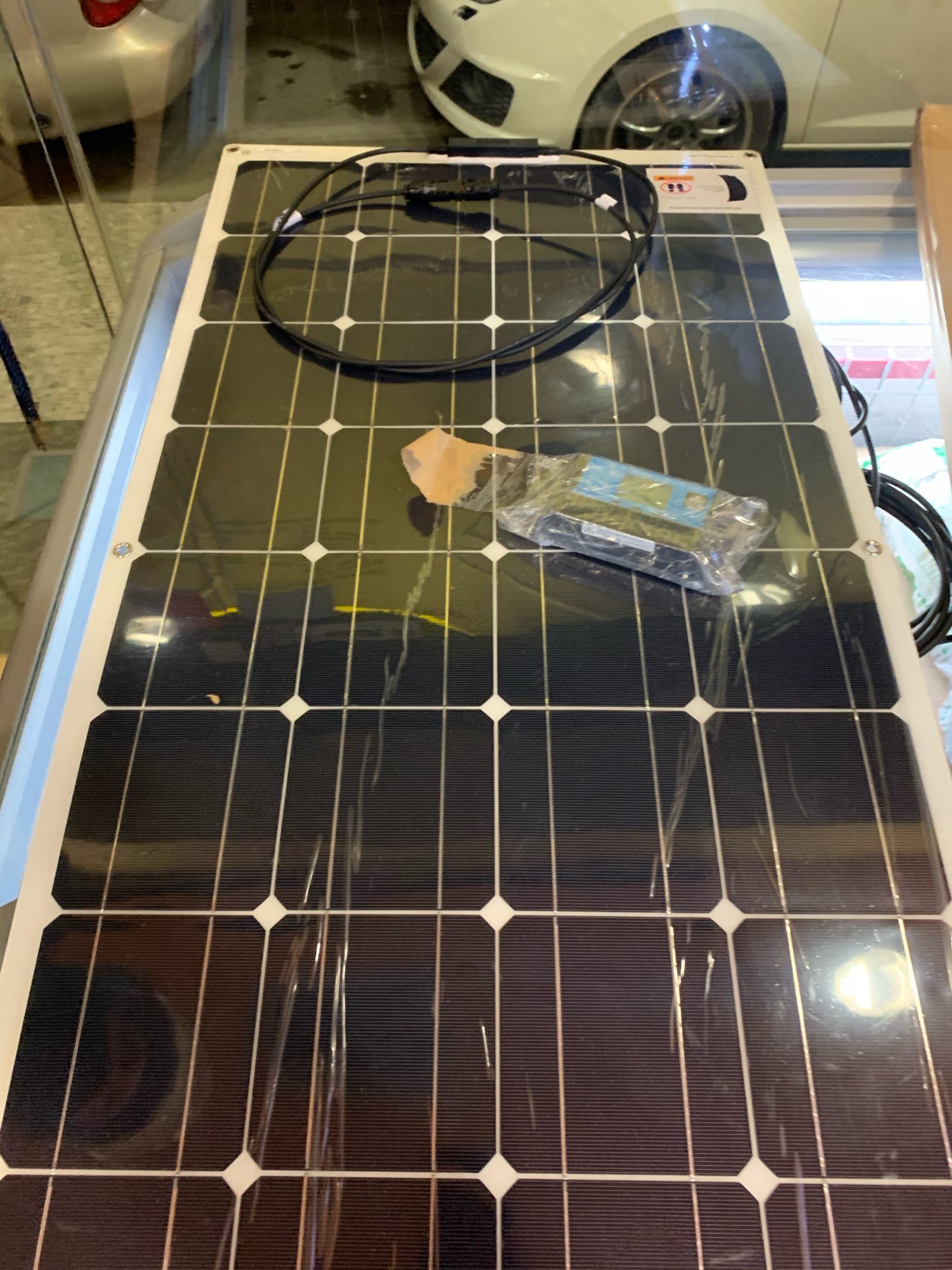

Solar panel arrived in a week. Great packing and already assembled works great.
Very competitive price that ve board
Windy Milnes –
Doručeno rychle, Trochu natržená krabice. Funkční? Zatím nevím
Samirah Hood –
muy exacto con la descripción, material de calidad
Chae Jiang –
Fastest Shipment ive ever got!!! 3 Days thanks a lot
Finn Junkermann –
Everything ok! Works on cloudy day
